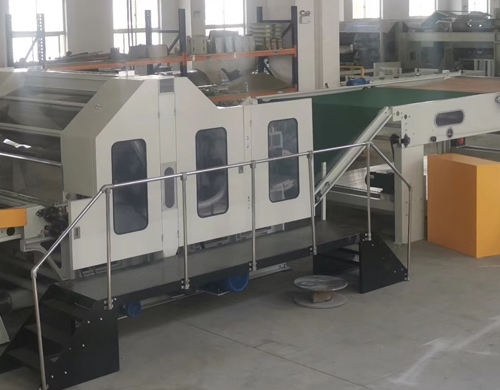

HJSL-Carding Machine

1) Machine function: Carding the cotton input from the automatic cotton feeder into a web, and processing it into a quantitative fiber web composed of single fibers.

2) Technical parameters: cylinder diameter: 1230MM
Doffer diameter: 492MM
Work roll diameter: 130MM
Output: 200-350KG/H (above 2.5-15D first-class chemical fiber assessment)
Motor power: cylinder: 11KW, doffer 2.2KW, feeding 0.75KW

3) Machine overview:
(1) Cylinders, doffers, work rolls, dehairing rolls, messy sticks, etc. are all quenched and tempered, and are precisely machined.
(2) A messy roller is installed in front of the doffer, and the output motor adopts frequency conversion control
(3) Roller stripping
(4) Feeding: Equipped with metal protection device, 4 rollers are wrapped with metal clothing, which are divided into upper and lower pairs, and the first pair is fed in the middle of the period.
The roller bearing seat and transmission gear are nylon parts, which can detect metal and have self-stop alarm and reversing functions.
(5) The roller feeding into cotton adopts frequency conversion control 0.75*4 ordinary motor with 60:1 reducer
(6) Cylinder and doffer are castings, the wall thickness of the cylinder is 25MM, the wall thickness of the doffer is 20MM, and there are reinforcing rings inside. The other rollers are made of seamless steel pipes.

Consult Now

Description

Strength factory Years of industry experience
·APEX is a high-tech enterprise specializing in the manufacture of automated home textile equipment. It has 28 years of rich industry experience.

·APEX continues to absorb advanced technology at home and abroad, and has now introduced David's five-axis machining center, 10 intelligent welding machines, 10 mechanical energy welding equipment, 4 laser machines, 4 punching machines, 4 nine-axis bending machines, 10 Milling machines, 10 presses and other advanced equipment, extensive cooperation with many domestic textile machinery research institutes.

Selected materials, quality checks
·APEX selects high-quality partners to provide accessories, electrical appliances use first-line brands such as Mitsubishi, Chint, Schneider, etc., and motors are directly supplied by well-known brands such as Siemens, Mitsubishi, and Delta inverters;
·APEX has a complete and scientific quality management system. Every production line and every production process is equipped with professional quality control, and every process is strictly controlled in accordance with the standards to ensure product quality.

Butler after-sales let you worry-free
·The professional after-sales team provides a 7*12-hour quick response mechanism, adhering to the concept of "customer first", and a strong technical service after-sales service to solve textile machinery problems for you;
·Pre-sale: according to the customer's demands, provide the optimal supporting scheme, in-sale: one-to-one guidance from technical engineers, after-sale: provide door-to-door installation and follow-up by special personnel.
